Lionel 282 Magnet Wiring


The Lionel 282 Crane Magnet Assembly part is number 282-65.
The best replacement wire to use is Wire-Plex 22-gauge SW22 .

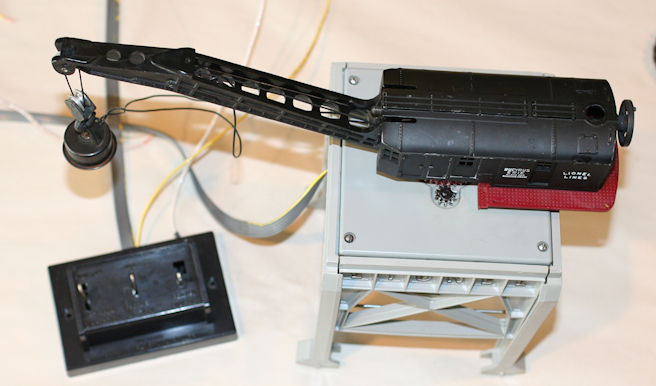

282 Magnet Rewire


The two magnet wires are looped from the bottom over the boom and fed into the cab at the bottom.

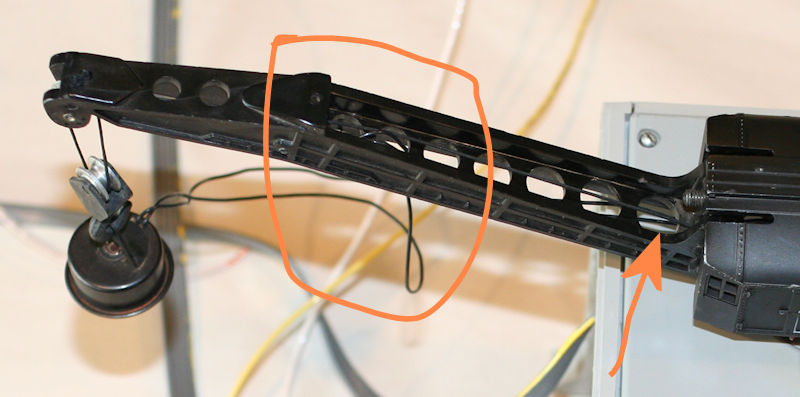

Magnet Wire Routing

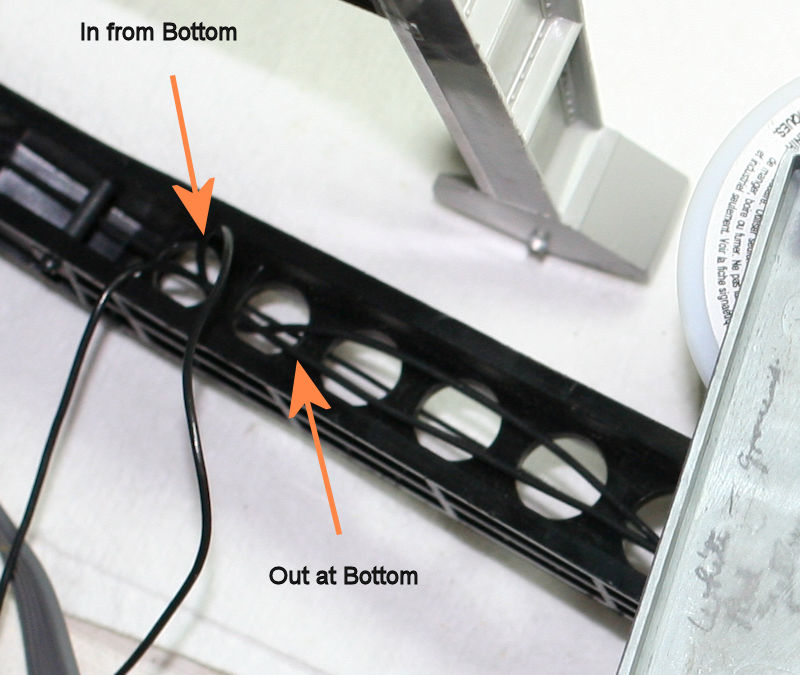

from Bottom



Wires Routed Into Cab Base Top

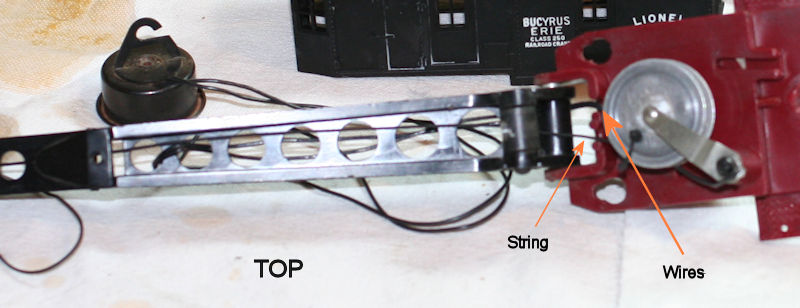

Top Wiring



Wire Contacts - No Polarity

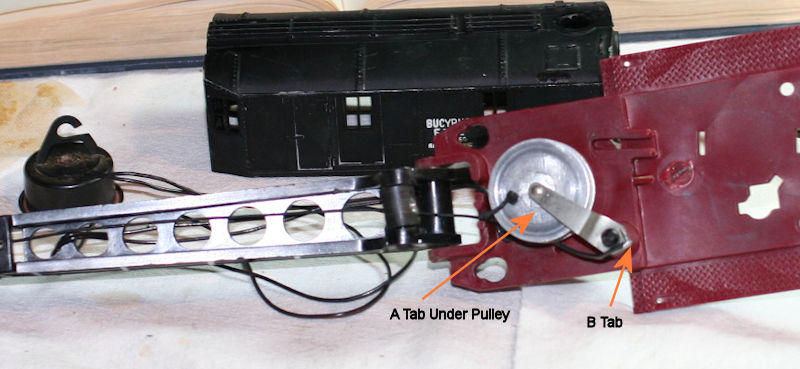

Wire Connections



This diagram is seen in the Repair and Operating Manual for Lionel Trains.

Pictorial Wiring
