Helix Track Design
Helix tracks allow the train to move up and down extending a two-dimensional into three dimensions. Below is information on novel helix designs used with O-guage trains.
See photos and information about the SSPRR Run Room Helix.
Double Helix
This was my first helix. I bought it at a RMDTCA estate auction in about 1989 for $35. After running trains on it at a lot of train meets I sold it to a TCA member from New Mexico. That TCA member had bid against me at the auction but couldn't take it home with him because he was travelling in a Thunderbird. He was very happy to be able to finally purchase it to run in New Mexico.
Slideshow
|
|
View a slideshow of this compact double-helix that is designed for train shows and allows for the public's interaction with the layout. |
Materials List and Drawings
The following information can help you construct a double-helix similar to the helix in the above slideshow:
- Double Helix Parts and Materials List
- Double Helix Design and Construction Drawings (html)
- Double Helix Design and
Construction Drawings (
530 kB)
Articles Featuring Various Helix Track Designs

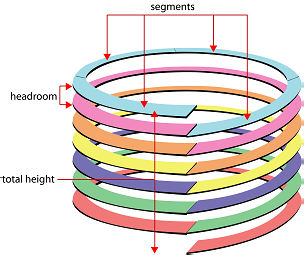

Helix Design Calculator
Click
on photo to see the Free Calculator for Planning and Constructing a
Helix.
Ladder-Supported Helix
This unique helix has intertwined spiral loops.
Interior-Supported Helix Designs
These pages described helix-based layouts using internal support structures:
Corkscrew-Based Helix Designs
A corkscrew design allows the train to move up and down in the same circle. Click here for an example.
