K-Line 42509 Operating Speeder Shed with Turntable
The turntable was installed on a main
loop in the Run Room and later moved to the Turntable Yard area with
Conventional Control.
Run Room Turntable Yard Area
Turntable Repair - Tighten the Screw
My troubleshooter left a bad order ticket when he was helping me get
ready for visitors. Repairs take longer when track must be
removed.
The speeder's turntable had quit moving with the speeder weight.

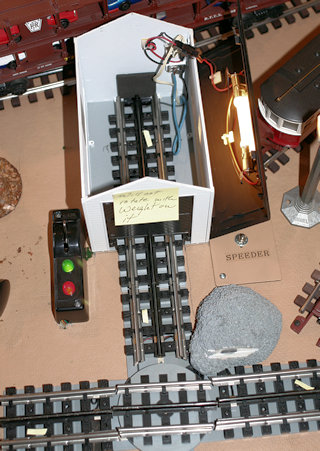

| Loosen wiring
that is secured under the table to allow turntable assembly
removal. The wiring in the shed will need slack and
can remain connected. The toggle switch marked SPEEDER controls the shed track. The sticky note pieces indicate where track screws were removed. Track screws had to be removed through the nearest curve. A cordless screwdriver makes the job easier. |
 |

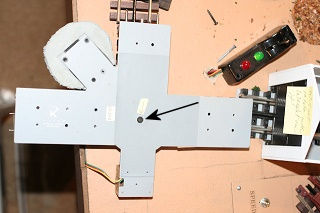

| Problem is
solved by tightening the black screw with the tiny
lock washer. Before tightening the screw, align the track for straight running with gear on edge of rock engaged.  |

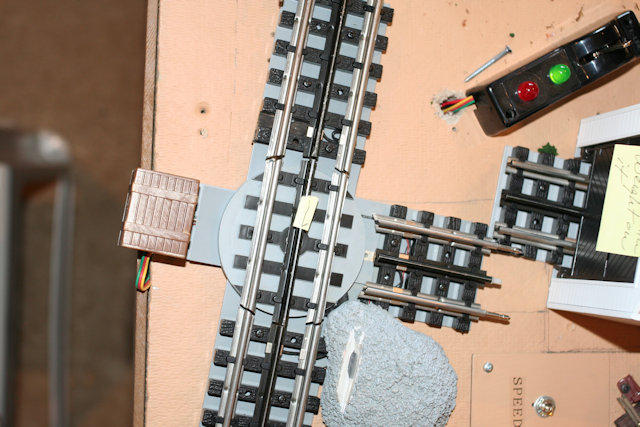

As you tighten the screw press down on the center of track on the top.  |

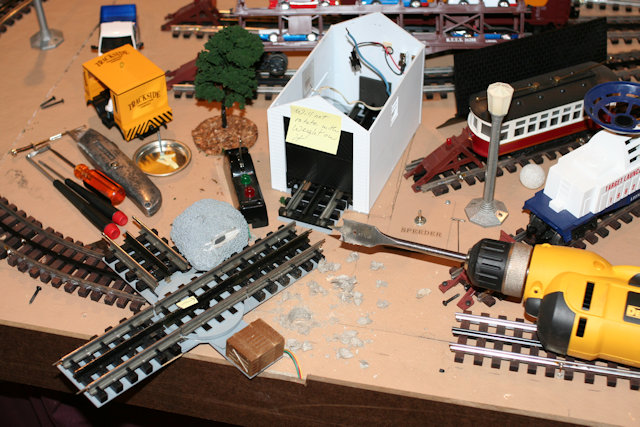

Just in case the screw loosens again, drill an access hole in the
table.

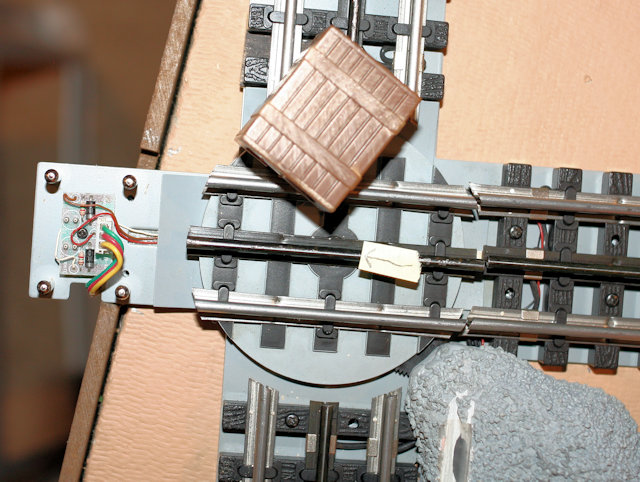

To access circuit board pull straight up on the wood box.
The box is a press fit.
See Video with Operation in Yard

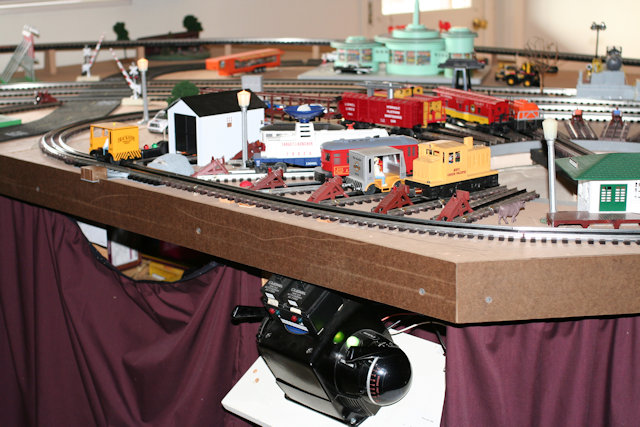

During Run Room construction the Turntable Yard Loop area was
designed for conventional operation with a postwar ZW. The
skirt Velcro is loose for wiring access.
